Sustainable Solar Panels
Our Products
Hightec Solar panels are made from the best high-efficiency mono crystalline solar cells available. All of our panels have been designed with a fully encapsulated junction box and connection system, as well as high-quality aluminum frames and back sheets to provide strength and long-term functionality.

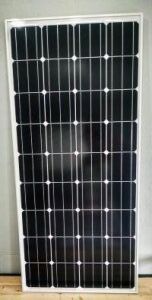

180 Watt Unit
RCL-M180w
| Electrical Characteristics | 180 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Maximum System Voltage [V] Maximum Series Fuse Rating [A] |
180 Watt
18.7 10.27 25.15 10.93 1000 20 |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
36 Mono-Crystalline Cells 156.75×156.75mm
3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1482x671x40 mm (58.35″x26.42″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |

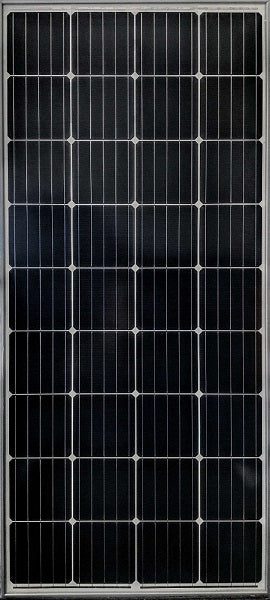

200 Watt Unit
RCL-M200w
| Electrical Characteristics | 200 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Maximum System Voltage [V] Maximum Series Fuse Rating [A] |
200 Watt
21.052 9.5 24.335 9.87 1000 20 |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
36 Mono-Crystalline Cells 156.75×156.75mm
3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1482x671x40 mm (58.35″x26.42″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
220 Watt Clear Bi-facial Panel
RCL-M220w
| Electrical Characteristics | 220 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Module Efficiency Maximum System Voltage [V] Maximum Series Fuse Rating [A] |
220 Watt
21.052 9.5 24.335 9.87 17.7 1000 20 |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
36 Mono-Crystalline Cells 158.75×158.75mm
3.0mm Thick, Low Iron Tempered Glass Clear EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1482x671x40 mm (58.35″x26.42″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
215 Watt Unit
RCL-M215w
(Comes in black or silver)
| Electrical Characteristics | 215 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Module Efficiency |
215 Watt
20.72 10.41 25.29 10.83 17.7% |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
36 Mono-Crystalline Cells 158.75×158.75mm
3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1482x671x40 mm (58.35″x26.42″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
325 Watt Unit
RCL-M325w
| Electrical Characteristics | 325 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Module Efficiency |
325 Watt
34.21 9.5 39.98 10.93 19.2% |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
60 Mono-Crystalline Cells 156.75×156.75mm
3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1665x1000x40 mm (65.55″x39.37″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
340 Watt Unit
RCL-M340w
| Electrical Characteristics | 340 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Module Efficiency |
340 Watt
33.4 10.16 40.20 11.07 19.2% |
| Mechanical Characteristics (STC) | |
|---|---|
| Solar Cells
Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
60 Mono-Crystalline Cells 158.75×158.75mm
3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1665x1000x40 mm (65.55″x39.37″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
400 Watt Unit
RCL-M400w
| Electrical Characteristics | 400 Watt |
|---|---|
| Nominal Output (Pmax) [W]
Voltage at Pmax (Vmp) [V] Current at Pmax (Imp) [A] Open Circuit Voltage (Voc) [V] Short Circuit Current (Isc) [A] Module Efficiency |
400 Watt
39.59 10.23 48.56 10.89 18.4% |
| Mechanical Characteristics (STC) | |
|---|---|
|
Solar Cells Front Cover Back Cover Encapsulant Frame Junction Box Connector Cables Dimensions Weight Max. Load |
72 Mono-Crystalline Cells 158.75×158.75mm 3.0mm Thick, Low Iron Tempered Glass TPE EVA Anodized Aluminum Alloy IP67 Rated MC4/ or Compatible 36″ (in) 1955x989x40 mm (76.97″x38.94″x1.57″) 11.8kg (26 lbs) Wind to 2400Pa and Snow to 5400Pa |
